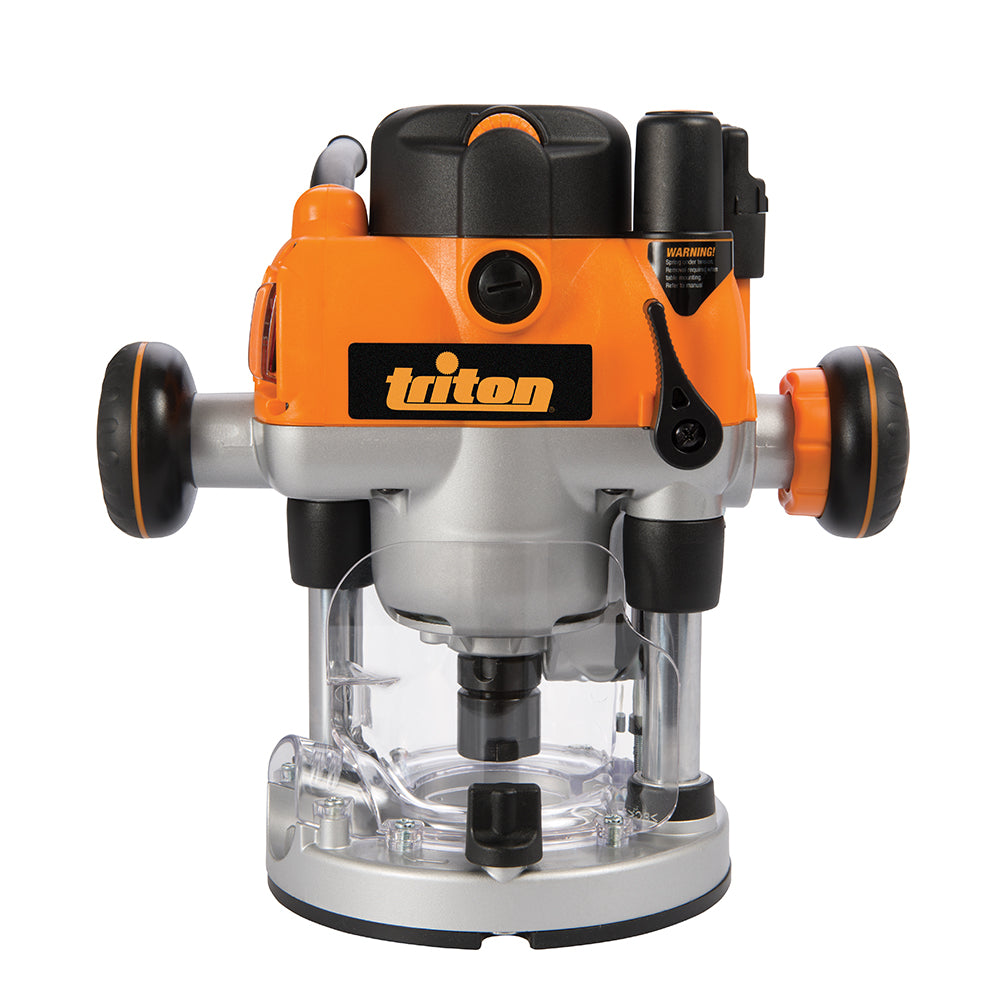

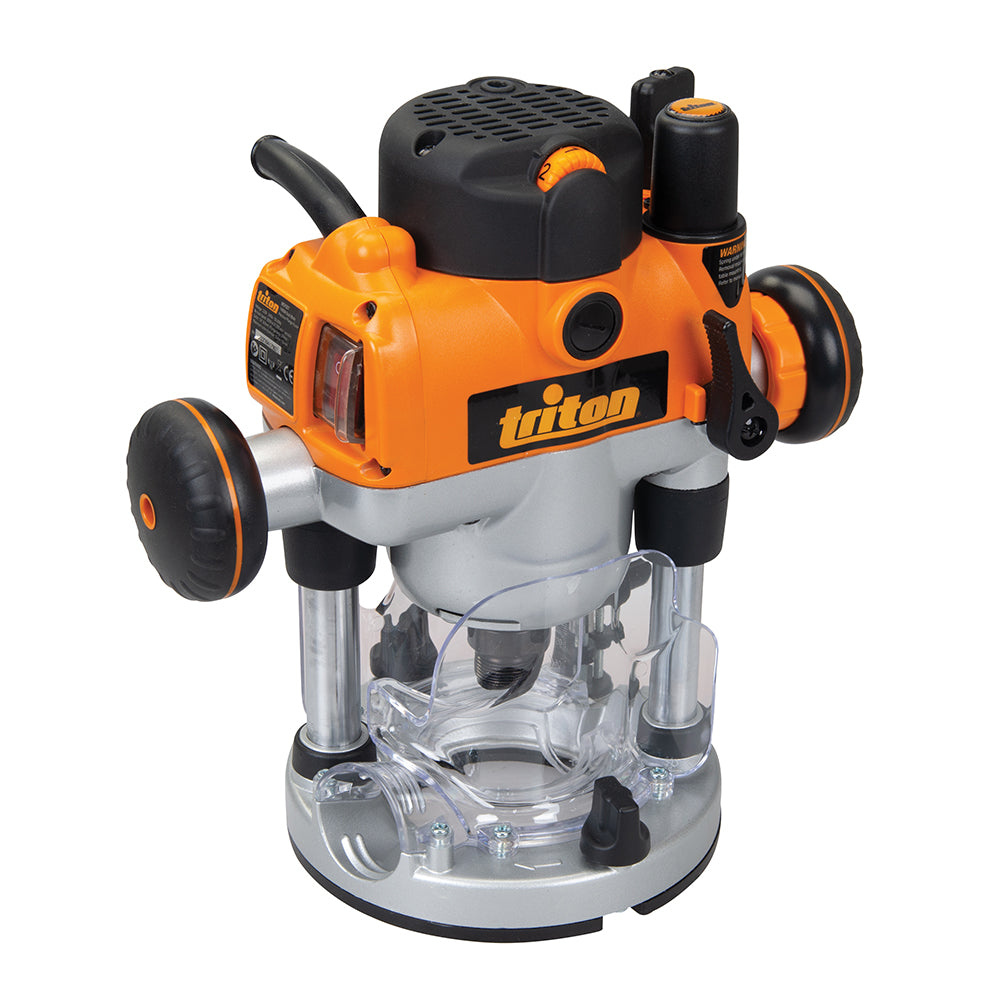

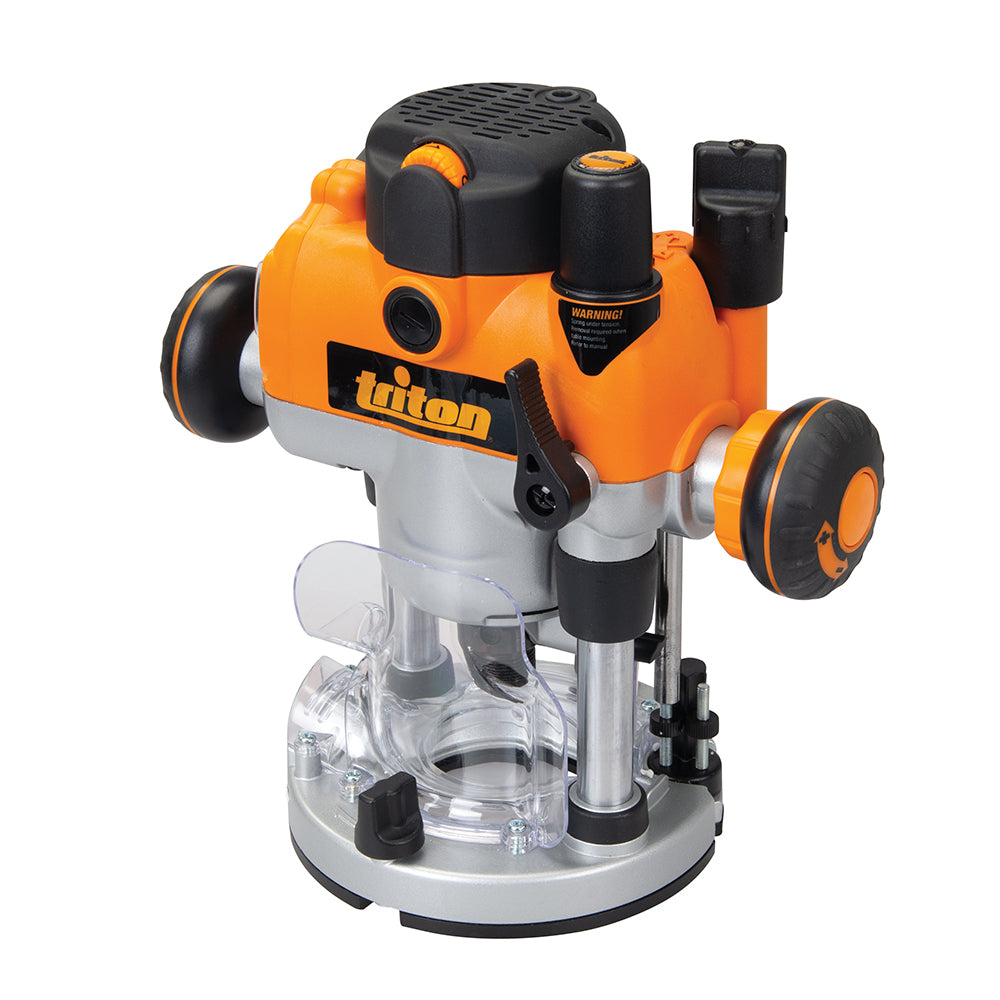

    MOF001

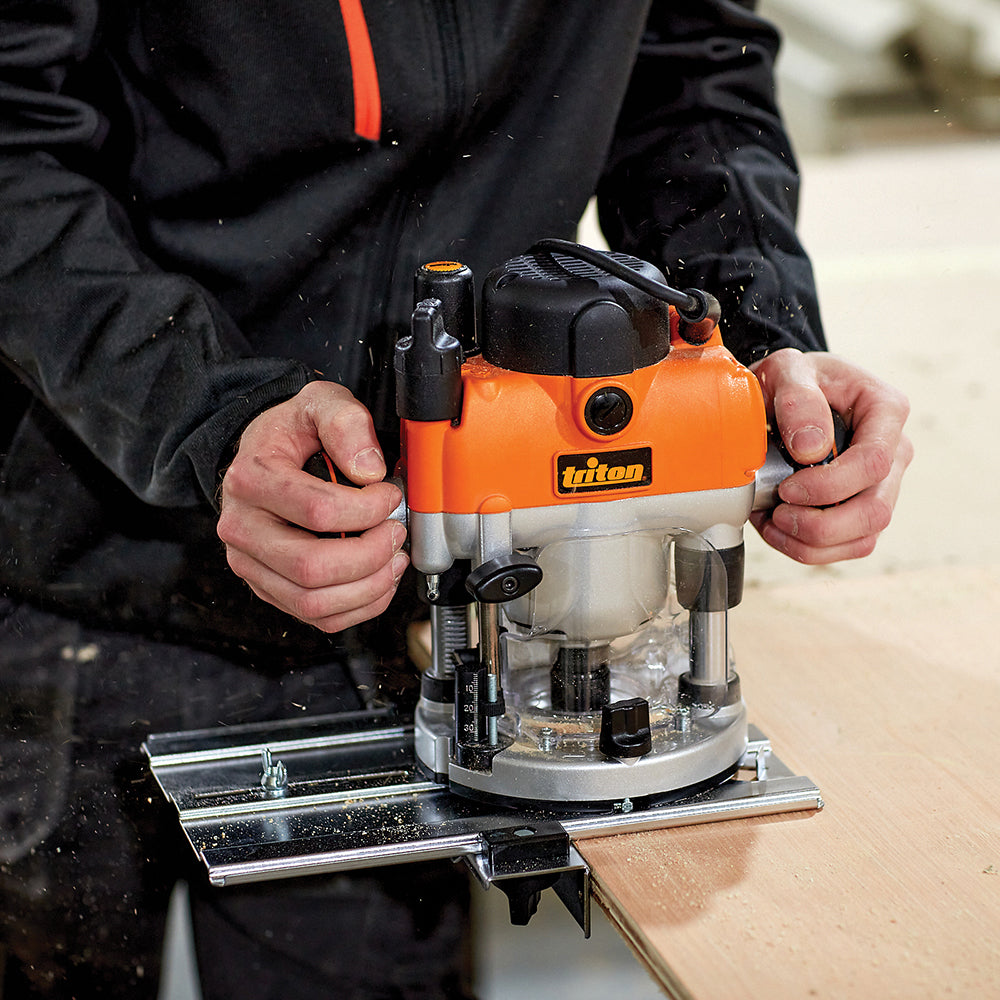

Fresatrice con motore potente e compatto da 1400 W cavalli e regolazione elettronica della velocità di 8000-21000 giri/min. sotto carica. Perni di inserimento rapido sulla base per una rapida installazione sulla piastra di montaggio. Articolo compatibile con Banco per fresatrice di precisione TWX7RT001. Torretta di facile installazione, con lettura diretta a 3 fasi per profondità di taglio precise e preimpostate. Un unico interruttore-selettore consente di passare dalla funzione "a immersione" alla funzione fresatrice stazionaria, con regolazione dell'altezza della cremagliera.

3 anni di garanzia - Per saperne di più

Consegna gratuita nel Regno Unito per ordini superiori a £100

Specifiche tecniche

    Altezza prodotto: 11-1/5"
    Lunghezza prodotto: 10-4/5"
    Larghezza prodotto: 6-1/2"
    Power: 1400W
    No Load Speed: 8000 - 21,000rpm
    Maximum Cutter Shank: 1/2"
    Plunge Range: 0-59mm
    Dust Port Dimensions: Inner 26.7mm, outer 32.8mm
    Weight: 4.78kg

What's in the box

    1 x Fresatrice 1400 W MOF001
    1 x Anello di serraggio 1/4"
    1 x Anello di serraggio 8 mm
    1 x Manovella per regolare l'altezza del banco
    1 x Guardia multifunzione
    1 x Chiave per anelli di serraggio
    1 x Piastra base estendibile
    1 x Manuale di istruzioni
    1 x Anello di serraggio 6 mm
    1 x Instruction Manual

Manuali

Caratteristiche del prodotto

    1/2" and 1/4" collet for a greater range of bit fitment
    2-1/4hp / 13A motor for maintained speed under load
    1/2" and 1/4" collet for a greater range of bit fitment
    Soft start and variable speed for all cutter types
    Automatic spindle lock engages only when power switch cover is closed
    Single button switches from plunge to fixed based router with rack and pinion adjustment
    Micro winder enables continuous fine depth adjustment through the full plunge range
    Rack and pinion height adjustment and table winder eliminates the need for expensive lifting mechanisms when used with router tables
    Electronic speed control ensures a fine finish on all materials
    Removable plunge spring for easy bit adjustment when table mounted
    3-stage turret with direct reading scales for precise pre-set cut depths
    Fully enclosed guarding provides maximum protection from the cut zone and assists dust extraction
    Multi-function fence provides optimum control for hand-held use and circle cutting

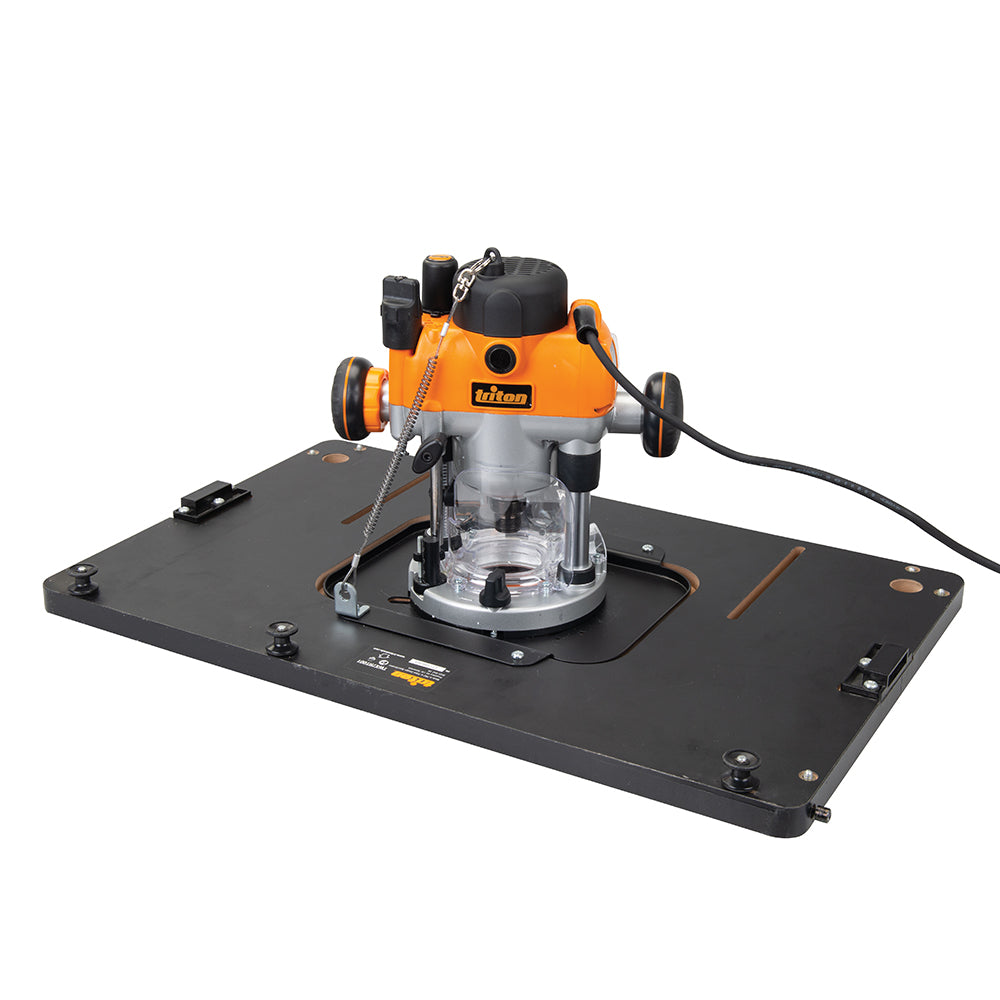

    Quick-fit pins for fast fitment and removal from the fence and the RTA300 Router Table

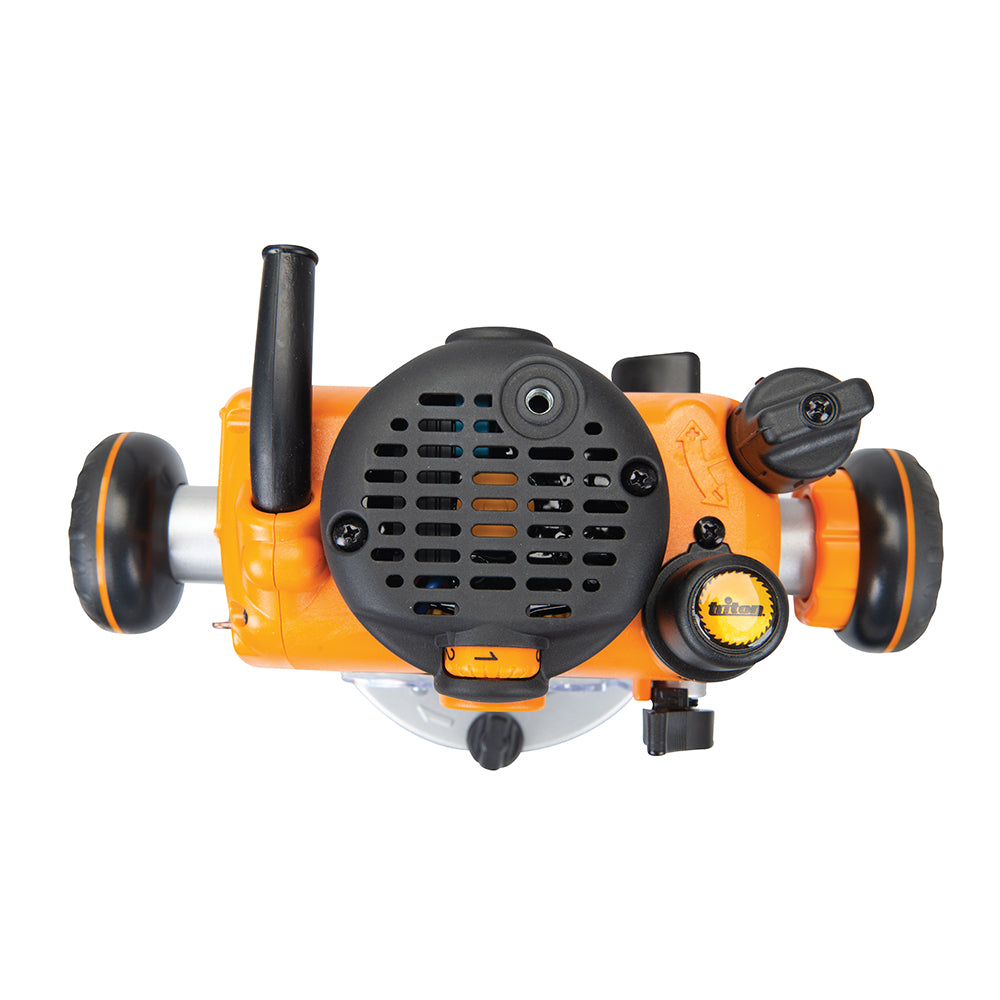

    Side air vents reduce intake of dust into the motor casing when mounted upside-down in a router table
    Excellent dust extraction for a cleaner, safer working environment
    Easy access brushes for quick changes

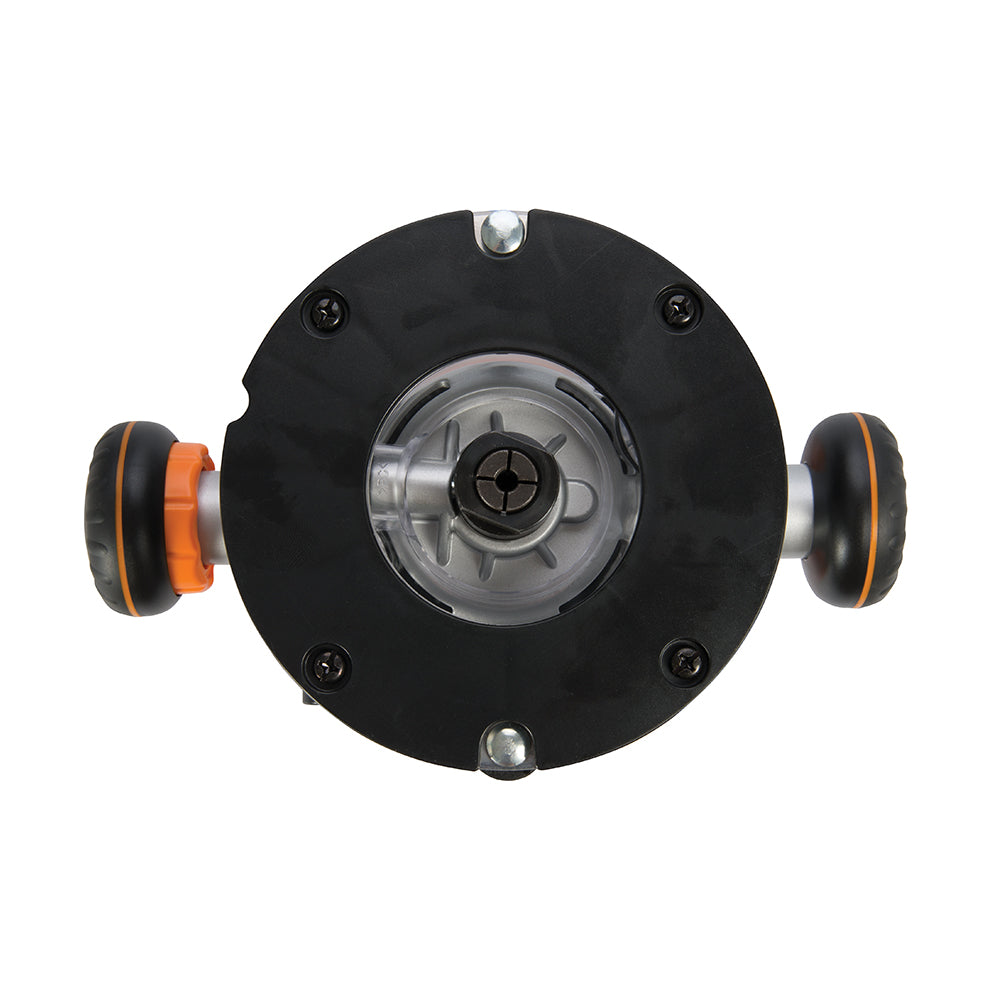

    Through the base single-wrench bit change is achieved with the automatic spindle lock
    Safety switch shutter locks closed in bit-change mode to prevent router being switched on

Video dei prodotti


Customer Reviews

Based on 383 reviews
84%
(321)
14%
(53)
2%
(7)
0%
(1)
0%
(1)
E
EnTee
Easy

As a small router this one is very easy to use but powerful enough for most uses. Ine is mounted under a portable router table. The precision adjusted makes it simple to get precise height changes without a lift. The auto lock also ensure but changing is easy.

V
Vassilis
Great tool

I own this tool and it's amazing how easy it is to configure it and use it. Until now I only used it as a handheld router and it was quite comfortable to handle. I'm looking forward to use it also in a router table

B
Balla, Istv�n
Triton MOF001 router

excellent router, professional performance, handy (user friendly) and effective

A
Andreas Bouvard
Best for Router Table

Beste Lösung für den Einbau in einen Frästisch. Aber: Der Security Switch müsste in diesem Anwendungsfall deaktiviert werden können.

V
Vladimir Kopajev
top Fr�ser fur Heimwerk

Gute Fr�ser fur Heimwerk , dopel funkzion gut in Tisch montihren mit 12mm Zange ... Zufriden.
